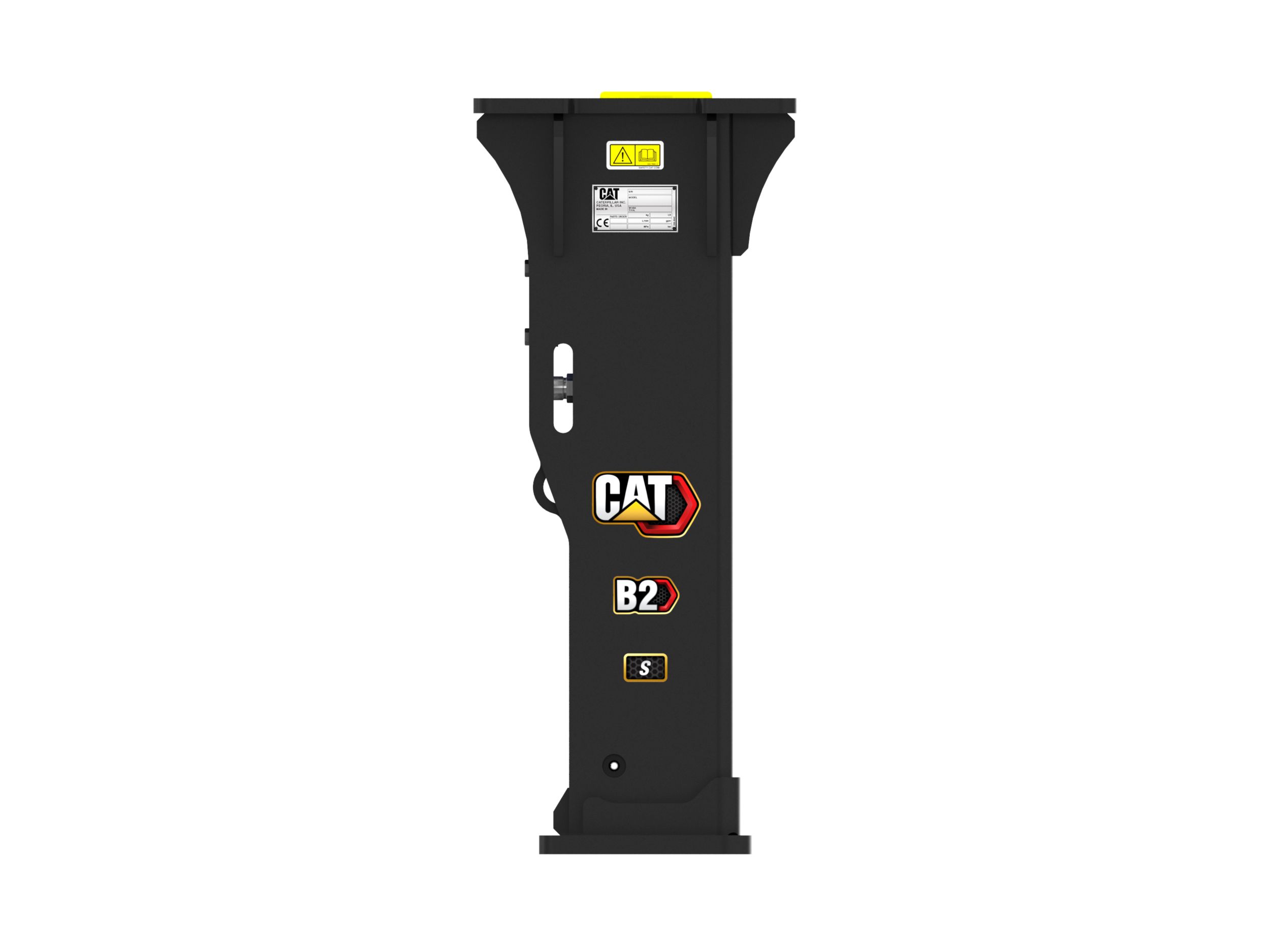

Cat B2s

Accessory Cat B2s

Cat B2s

Hydraulic hammer

  • Gasschläger
  • schallgeschütztes Gehäuse
  • IVC Ventil für konstante Schlagenergie
  • Meisselbüchsen durch Gleitsitz einfach dreh- und austauschbar
  • Service freundlich

Cat® B Hammers are suitable for use in a wide range of construction and light demolition applications - such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.

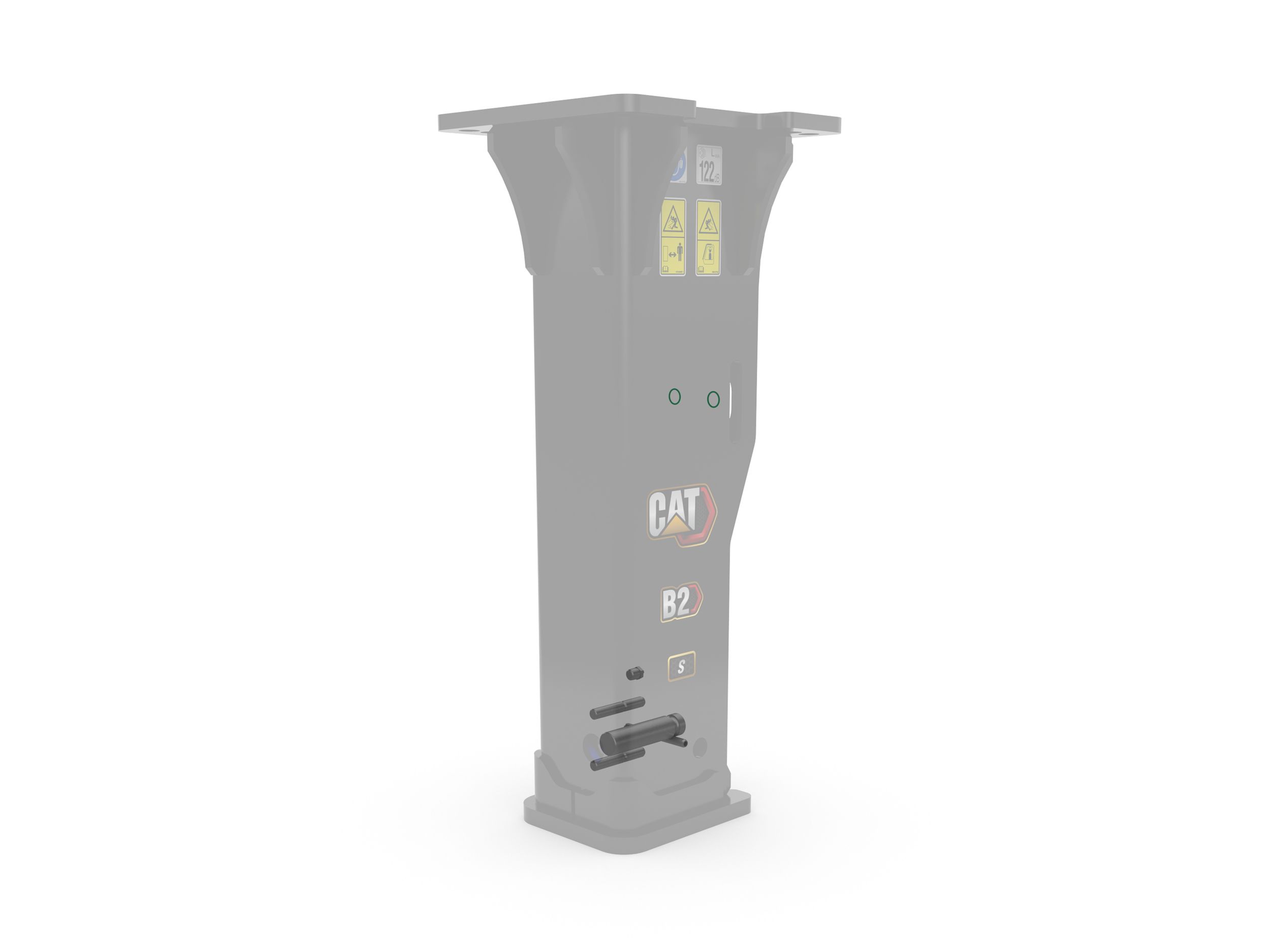

Ergonomically Positioned Hydraulic Lines

Ergonomically positioned hydraulic lines are designed to optimize serviceability, are easily accessible and require no special tools. Housing has been positioned to protect against force and dirt during impact but allow for wrench access. Hydraulic lines and back head pressure can be checked and charged while breaker is mounted to machine, allowing quick monitoring of breaker's condition.


Gas Fired Design

Gas fired design delivers consistently high production over time making the breaker reliable in applications such as concrete, asphalt, rock and light trenching.

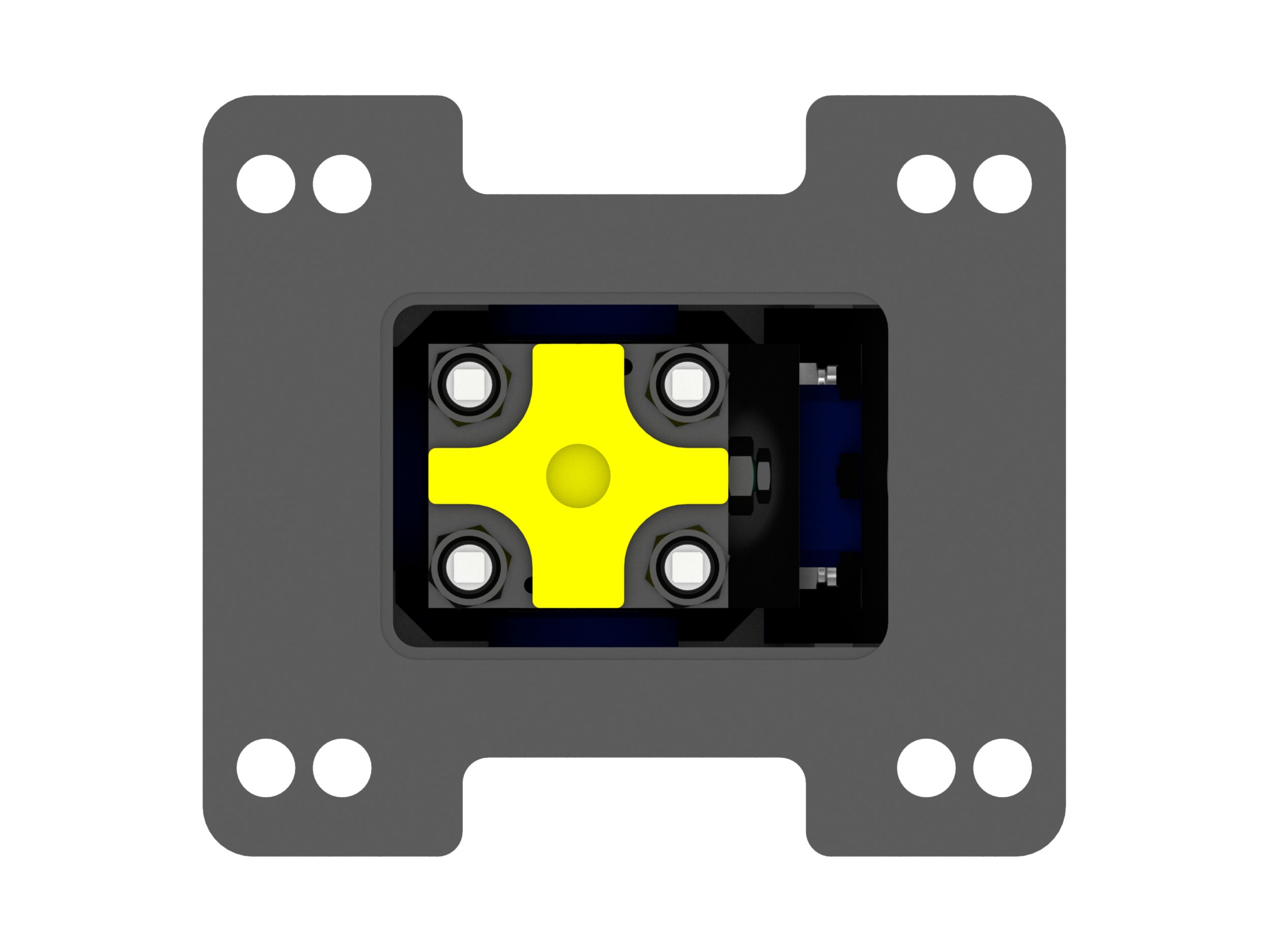

Flat Top/Top-Mount Style

Flat top/top-mount style provides a larger work area and excellent operator visibility with a common footprint and hole pattern for optimum versatility. Top-mount style increases impact power by keeping breaker force and stick force in line. A top-mount bracket will transfer back significantly less recoil and bending stress into the end of the stick, resulting in reduced impact on machine structures. Full complement of mounting brackets is available to suite coupler or pin-on preference.


Slip Fit Bushings

Slip fit bushings are field replaceable and easy to maintain due to one locking pin, extending wear life and reducing owning and operating costs. Upper bushing rotates 360°, lower bushing has two positions and can be rotated 90°.

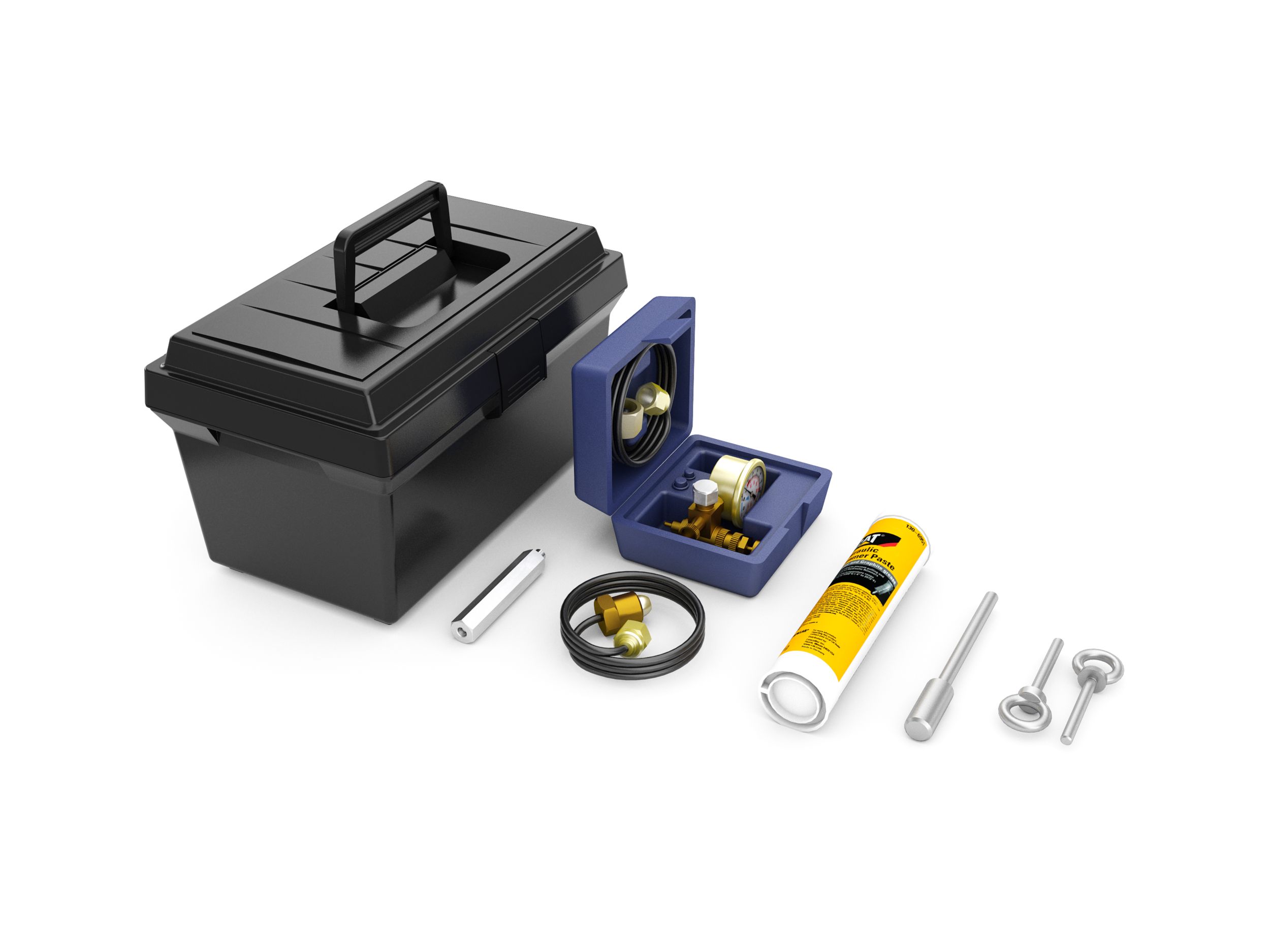

Included with Each B Series Hammer

Every B Series Hammer comes with:

  • Tool Kit w/Storage Box

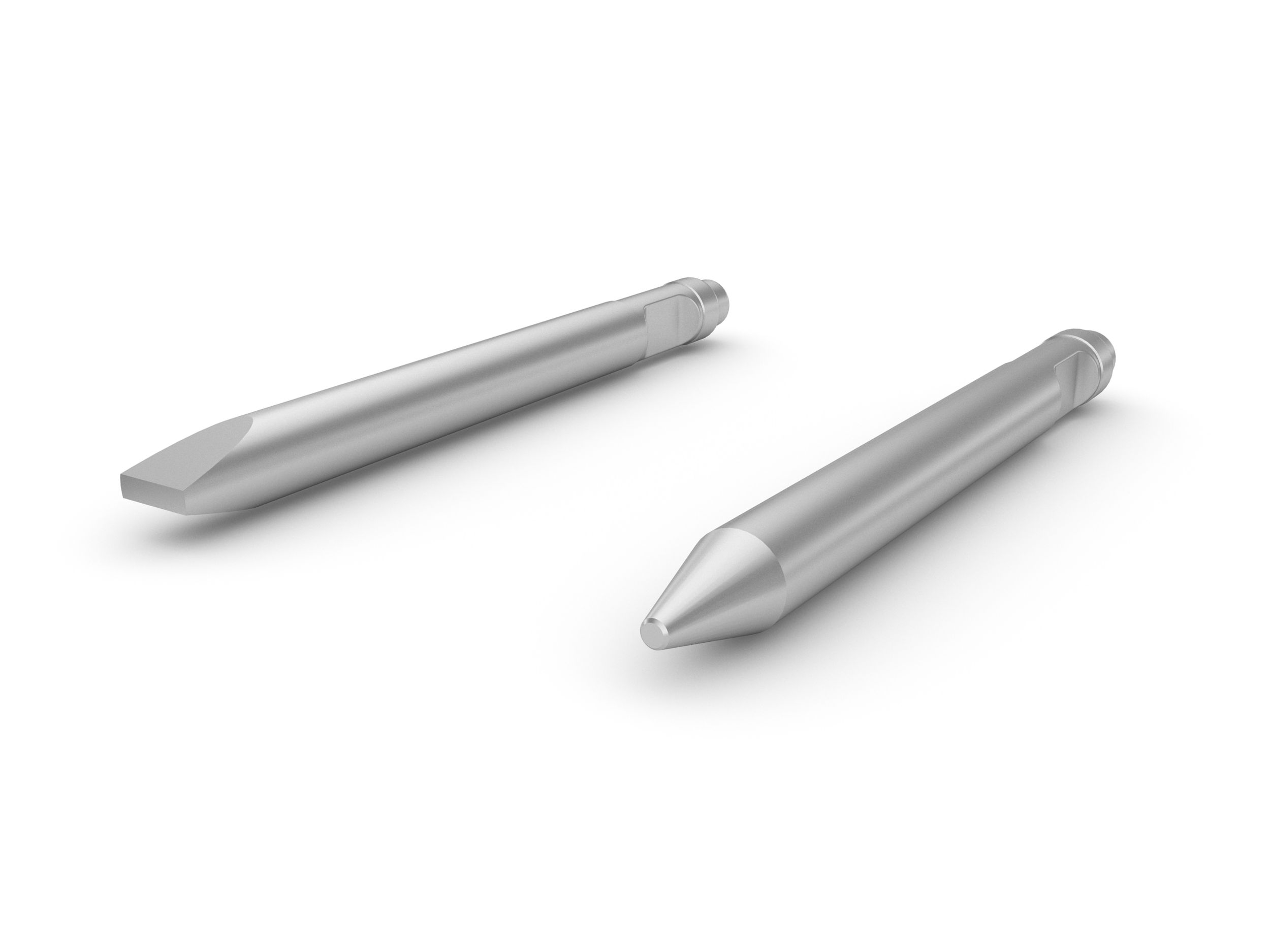

  • 2 Tools (1 x Conical and 1 x Transverse Chisel)
  • Maintenance Kit

Operating Weight - With Tool116.8 kg
Energy Class290 J
Machine Class1-3 Ton Mini Excavators
Tool Shaft Diameter45 mm
Impact Frequency700-1200 bpm
Minimum Operating Pressure8798 kPa
Minimum Carrier Weight1497 kg
Optimal Hydraulic Flow20-30 lpm (5.3-7.9 gpm)
Overall Width300 mm
Overall Length340 mm
Overall Height1091 mm
Height - Without Tool795 mm
Sound Level122 dB
Mounting Bracket SizeSmall-Medium
