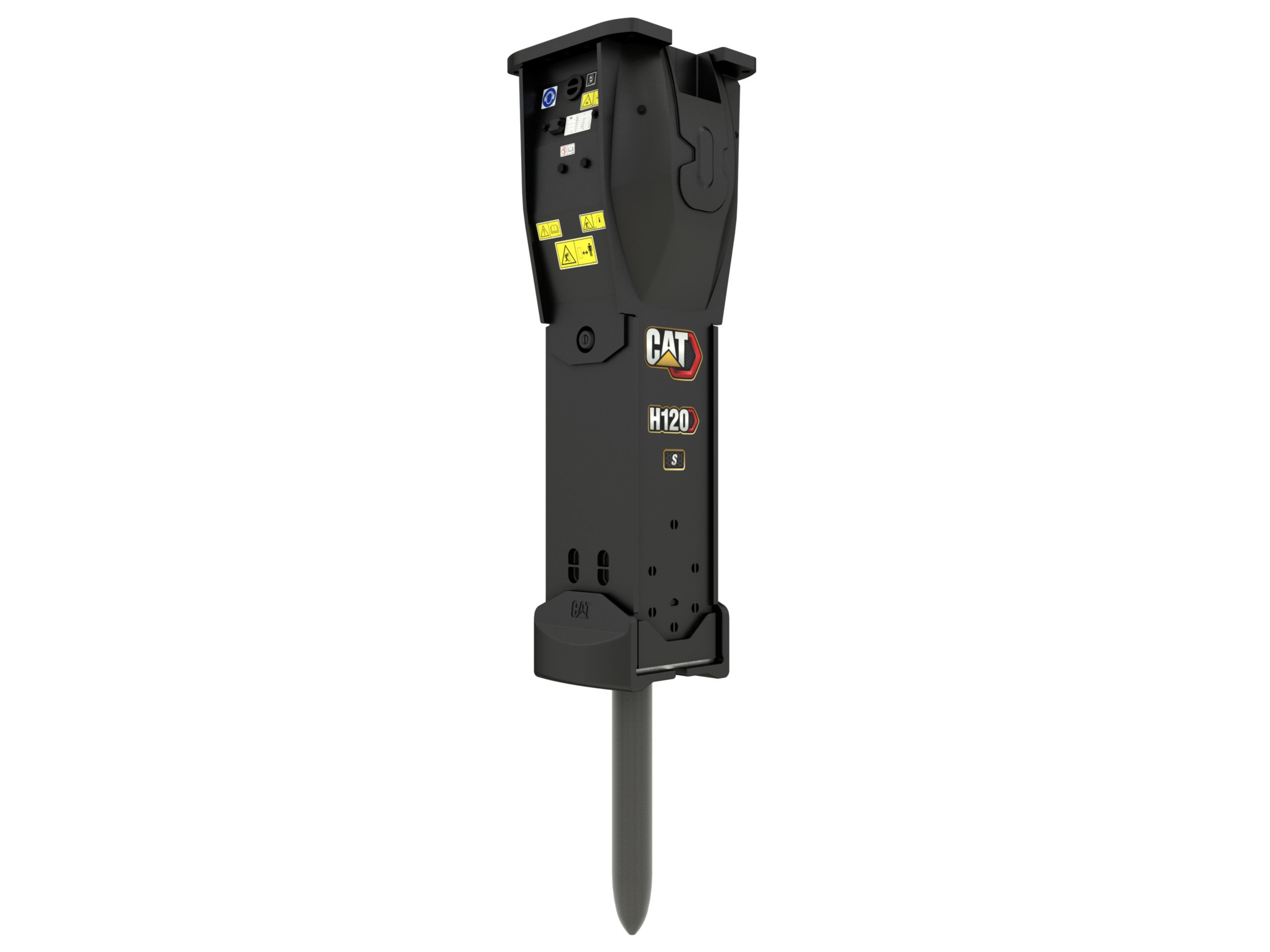

Cat H120 S
Hydraulic hammer
- Meissel Durchmesser 120 mm
- integrierte Schmieranlage, Zeiteinsparung und Kosteneinsparung
- Leerschlagschutz, schützt Schlagwerk vor Beschädigungen
- hohes Kraft Leistungsverhältnis, hohe Produktivität, spart Brennstoff
- servicefreundlich, tiefe Unterhaltskosten
- gut geschütztes Schlagwerk, tiefe Unterhaltskosten
- Runde Sperrachsen, für schnelles Wechseln der Meissel
Provides blank firing protection by stopping piston movement when no material is beneath the tool. An internal buffering system helps reduce machine vibration, and standard silencing supports operation in noise-regulated environments.
Allows operators to select high piston speed or maximum power settings. An oil-fired operating cycle delivers power with each blow, while critical hydraulic components are protected within the hammer housing.
Includes standard onboard autolube for continuous greasing during operation. Features a slip-fit, 90-degree rotatable lower bushing for field replacement, an oil-fired design that eliminates gas charge checks, and convenient maintenance access points.
Cat asset tracking is available on all hammers. Attachment location and status can be monitored in VisionLink™, and geofence alerts can be configured when assets leave designated site boundaries.
| Blows per Minute | 350 to 620 |
|---|---|
| Minimum Operating Weight | 1480 kg |
| Rated Flow - Minimum | 100 L/min |
| Rated Flow - Maximum | 170 L/min |
| Minimum Operating Pressure | 13000 kPa |
| Maximum Operating Pressure | 15000 kPa |
| Tool Shaft Diameter | 120 mm |
| Minimum Carrier Weight | 16 t |
| Maximum Carrier Weight | 27 t |
