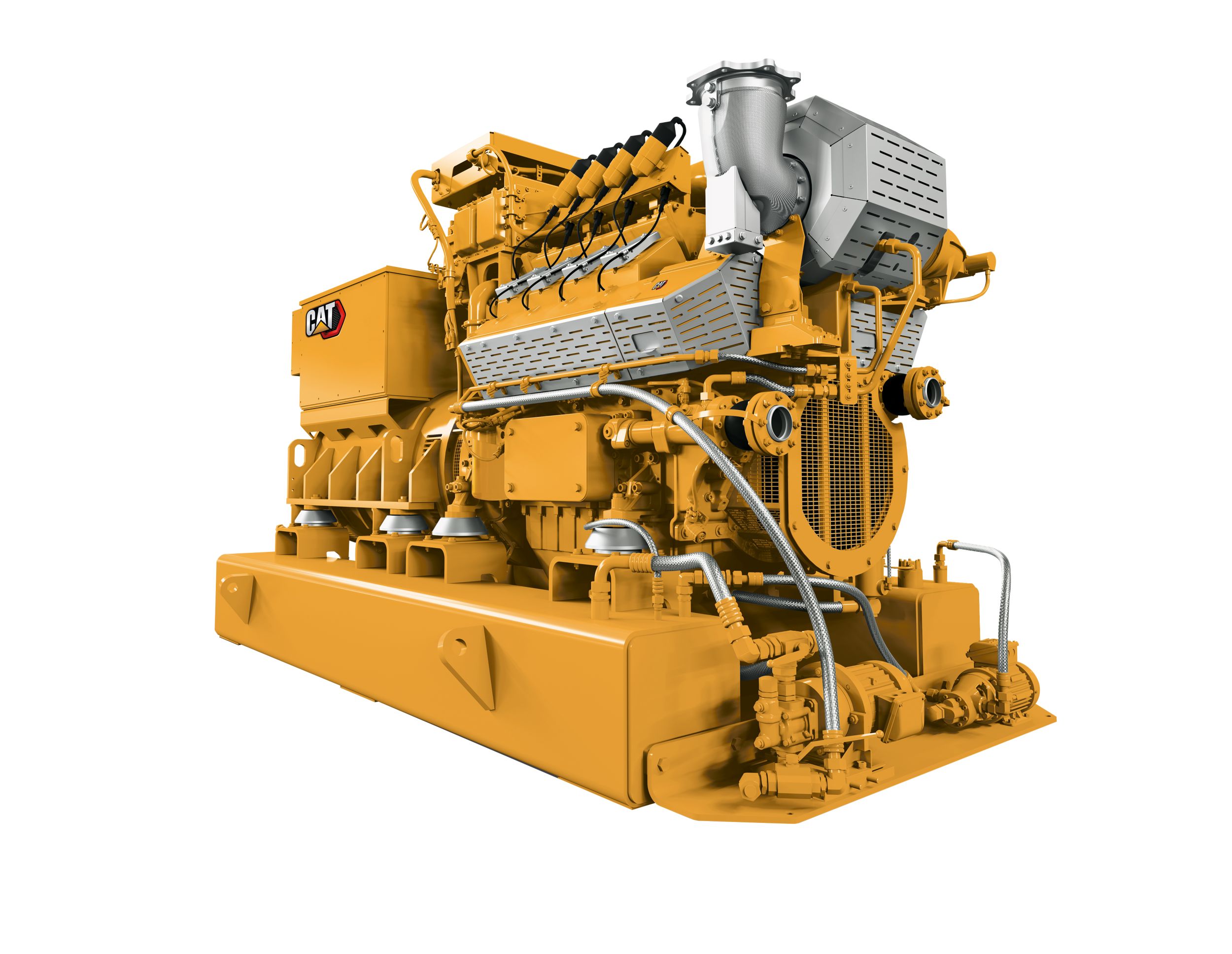

Cat CG132B-8
Cogeneration units
- Highest efficiency in its output class
- Up to 42.5% improved electrical efficiency
- Reduced vibration and stress on components
Low installation, Building and Operating Costs
- Compact design with integrated fuel tanks for daily refilling
- Lower setup costs than comparable engines
- Reduced investment costs through expanses product scope and TPEM digital control system
- Long maintenance intervals (up to 80,000 hours)
- Optimized oil management
Optimized Lubrication Consumption
- Consumes less than 0.1g/kW of oil
- Up to 66% lower lubricant consumption than comparable models
- Longer lubricant change (up to 4,000 hours) and oil change intervals
Engine Specifications
| Engine Model | CG132-8 |
|---|---|
| Displacement | 17.5 l |
| Aspiration | TA |
| Bore | 132 mm |
| Stroke | 160 mm |
Generator Set Dimensions
| Length | 3100 mm |
|---|---|
| Width | 1780 mm |
| Height | 2150 mm |
| Dry Weight - Genset | 5720 kg |
Generator Set Specifications
| Continuous Rating | 400 ekW @1.0pf |
|---|---|
| Fuel Type | Natural Gas, Biogas, Coal Gas, Hydrogen Blend (up to 25%) |
| Maximum Electrical Efficiency | 43.1% / 42.1% |
| Frequency | 50 / 60 Hz |
| RPM | 1500 or 1800 rpm |
